- Certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372
- PFA*- Fused solid ball
- Same end-to-end as any flanged gate or plug valve
- Tapped and plugged boss allows for venting downstream, or test port for backflow preventer
- 2” through 8” - Full port
- Class VI positive shutoff
- 100% Lead-free
- Low torque
- Ideal for liquid, air, and backflow applications
- 200 W @ 200° F
- This cast iron ball valve has been engineered to replace any IBBM gate valve, all-iron gate valve, or plug valve
| Series | Locking Handle - Standard |
| Size | 8" |
| Port Type | Full Port |
| End Connection | Flange |
| Valve Operator | Lever Operator |
| Face to Face | 11.50" |
| Center of Port to Top | 9.76" |
| Flange Diameter | 13.5.00" |
| Center of Valve to Handle End | 19.70" |
| Port Diameter | 8.00" |
| Bolt Holes | 8 |
| Weight lbs | 199 |
| Pallet Quantity | 8 |

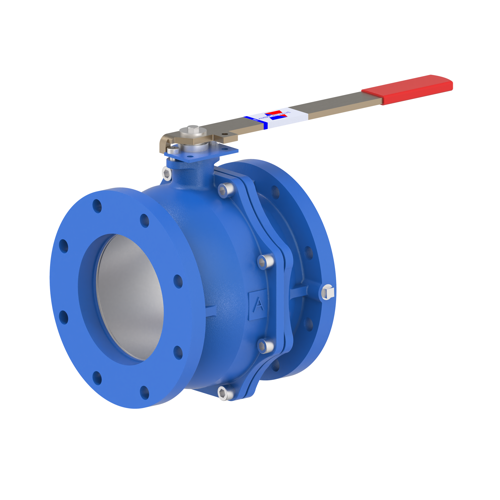

| Isometric View | Download |

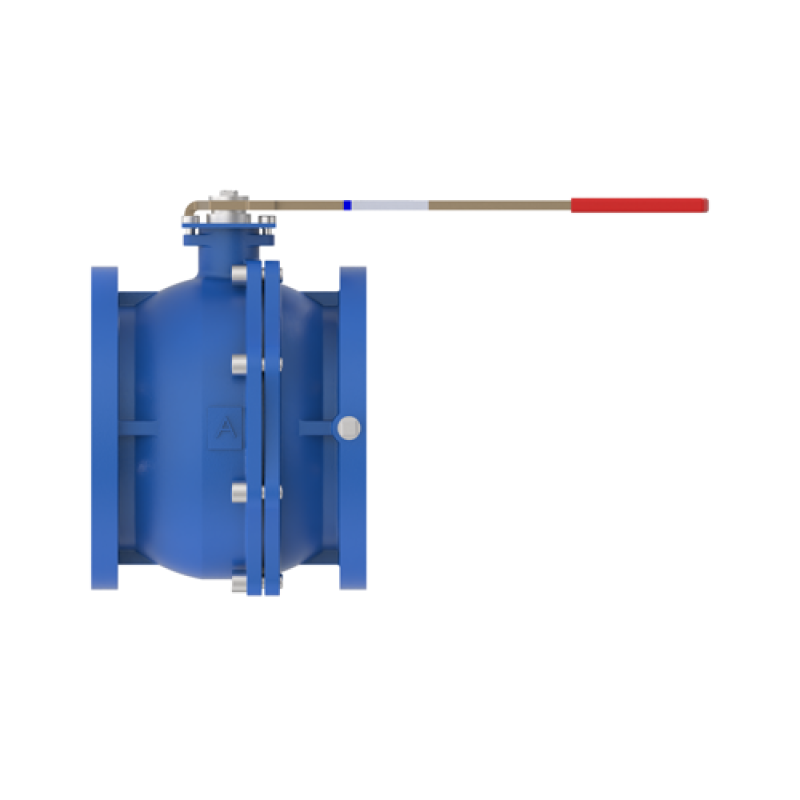

| Front View | Download |

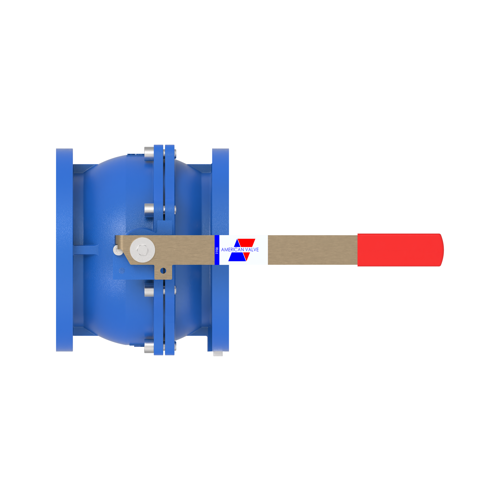

| Top View | Download |

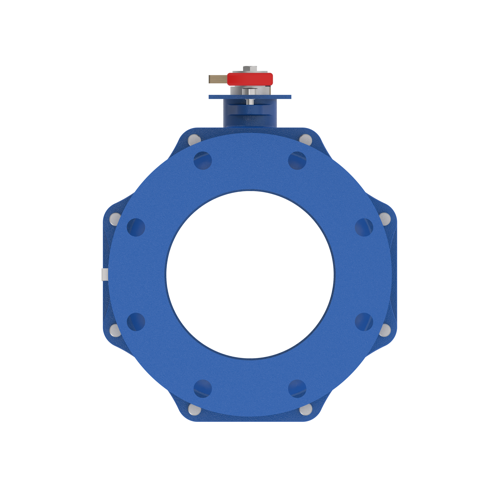

| Side View | Download |
